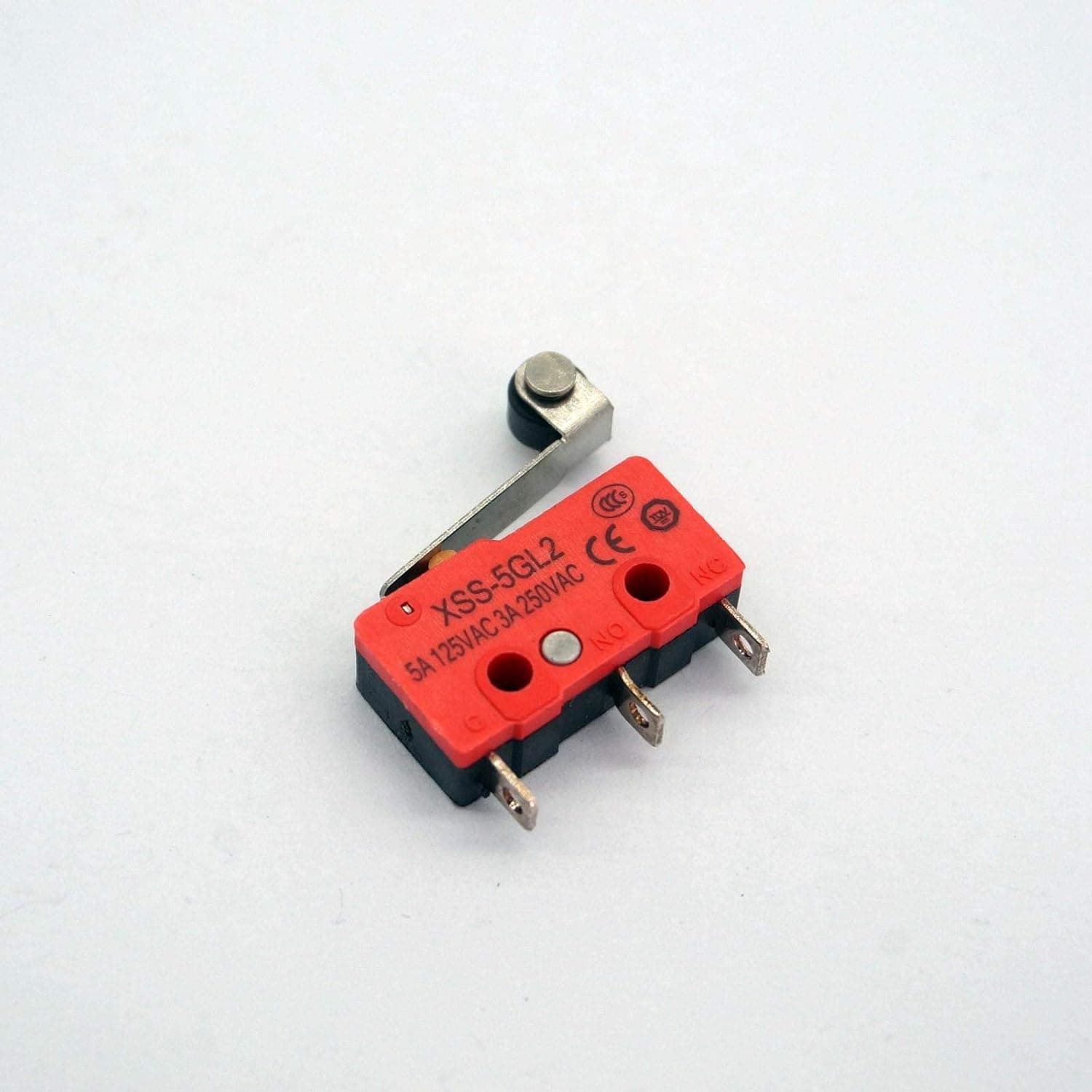

Switch 5pcs XSS-5GL2 SPDT NO+NC Contact Miniature Micro DIP Red/BALC Short Roller Lever Type

micro switch Item Description: Product Item:（5）XSSS-5GL2 SPDT NO+NC Contact Miniature Micro Switch Short Roller Lever Type Material:Phenolic Plastics Diver Type:Short Roller Lever Type Specification: 1.Contact Form:SPDT NO+NC 2.Operating Speed:0.1mm-1m/s 3.Mechanical Operating Frequency:400times/min 4.Electrical Operating Frequency:30times/min 5.Insulation Resistance:100MΩ(above) 6.Contact Resistance:30MΩ(initial value) 7.Withstand Voltage: Non-connection wire:1000VAC Every Terminal:1500VAC 8.Misoperation Vibration:10-55Hz Amplitude 1.5mm 9.Durable Impact:1000m/s2,Misoperation Impact:300m/s2 10.Electrical Life:100,000 above.Mechanical Life:1000,000 above 11.Protection Degree:IP40 12.Operating Temperature:-25~+80℃ 13.Operating Humidity:＜85% 14.Rating:5A/125VAC,3A/250VAC Attention:Dimensions/Operating Characteristics are in the pictures and chec it for your reference Characteristic: 1.Small contact gap, action,high sensitivity and small operating . 2.Widely in appliance,electronic equipment,automatic machine, communication equipment,car electric,apparatus and instrument,electro motion tool etc. Each Bid for 5 PCS Item Specification: Item Type: Switches Switch Type: Micro Switch
