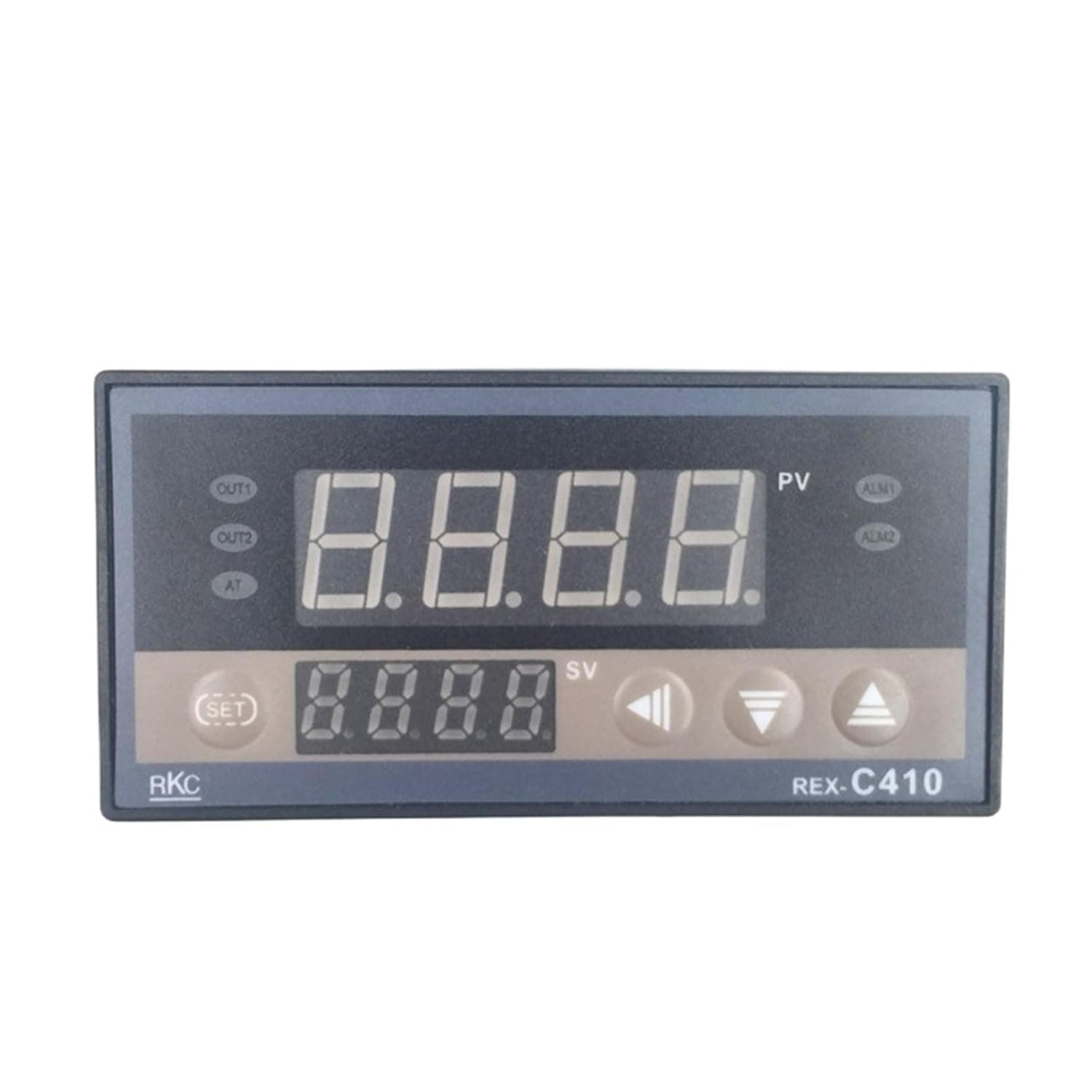

Digital PID Temperature Temp Controller RKC REX-C410 48*96mm Horizontal

Temperature Controllers Specifications: Display: Dual display forCelsius (°C) Range: -0-400°C (Only when with the factory K type thermocouple) Thermocouple: K,J,S,E,R,Wre3 ~ Wre25 Thermo Resistor: PT100, Cu50 Main Output: Relay: PID cooling/heating control 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm Accuracy: 0.5% Input: K Dimension: 48mm x 96mm x 900mm Weight: about 300g Individually programmable PID control parameters. P, I, d, controlling period, digital filter coefficient, and more Relay control ready to connect Input: TC(K,J,S,E) / RTD (Pt100,CU50) universal input Control output: RELAY Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm. Package include: 1x REX-C410 PID Temperature Controller (not included thermocouple) 1xUser Manual in English Theory : Temperature Controller Display Type : DIGITAL Power Type : Charger Model Number : REX-C410 Display Size : 2.0 - 3.9 Inches Origin : Mainland China Max Measuring Temperature : 120°C & Above Style : Standing Station Usage : Industrial Size : 48*96*900mm Input : Thermocouple/RTD Control output : Relay Alarm output : ALM1 Display : Celsius °C Unit Type : piece Package Weight : 0.4kg (0.88lb.) Package Size : 12cm x 5cm x 10cm (4.72in x 1.97in x 3.94in)
