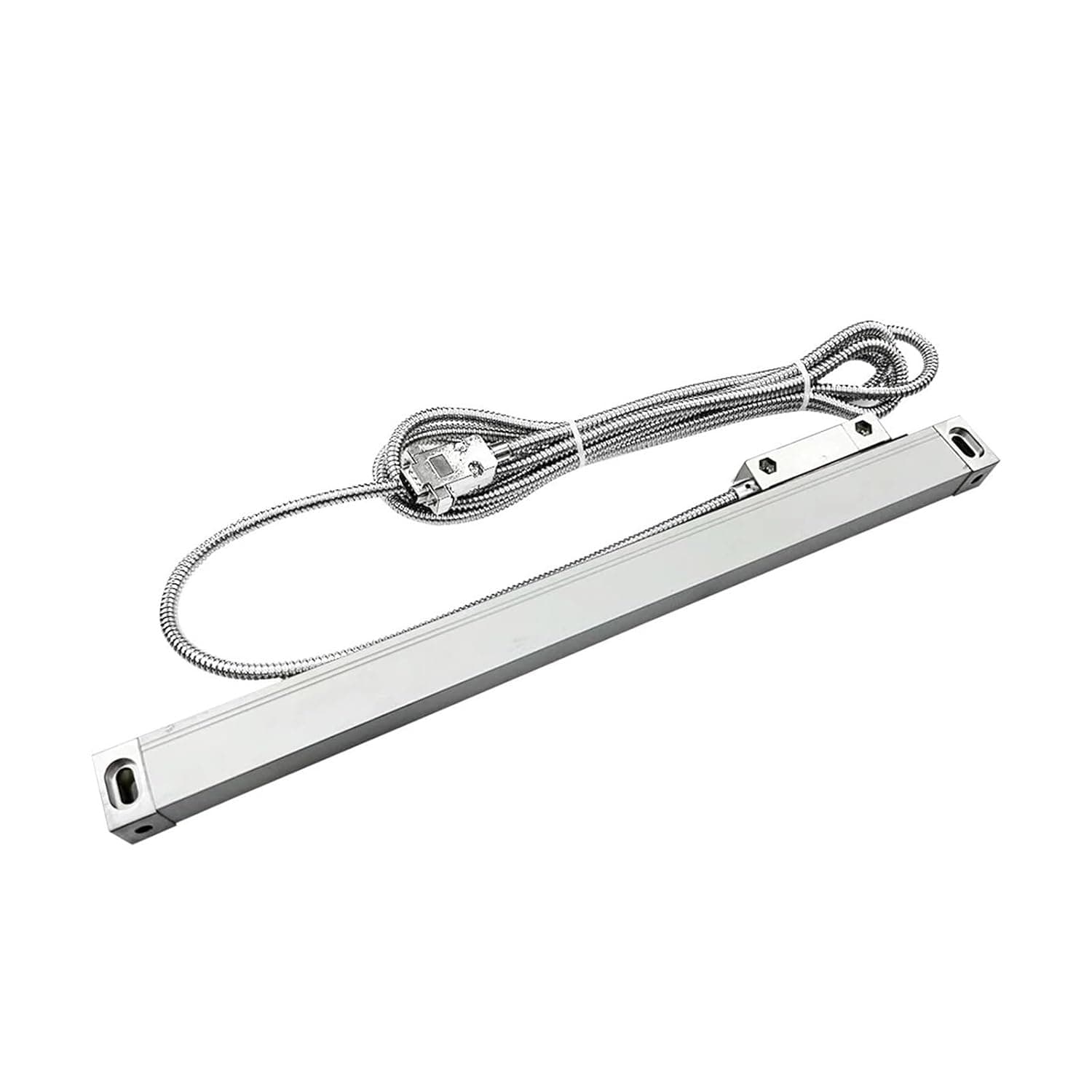

0.005mm Linear Grating Ruler 5um Sensor Encoder TTL 100mm 150 200 250mm 300 350 400mm for Milling Tools(200mmtravel)

Sensors ========== Model Number : KA35-100 150 200 250 300 350 400 Model : KA35 Certification : CE Model Number : KA35-100 150 200 250 300 350 400 Operating temperature : 0-50°c Output mode : TTL Protection grade : IP54 Interface Typ : DB9 Resolution : 5um/0.005mm Max of Measuring speed : 60m/min Input voltage : 5VDC Cross Section Dimension : 20mm* 18mm overall length : Travel+112mm Installation holes distance : Travel+102mm Cable length : 3 meters
